Fig. 01

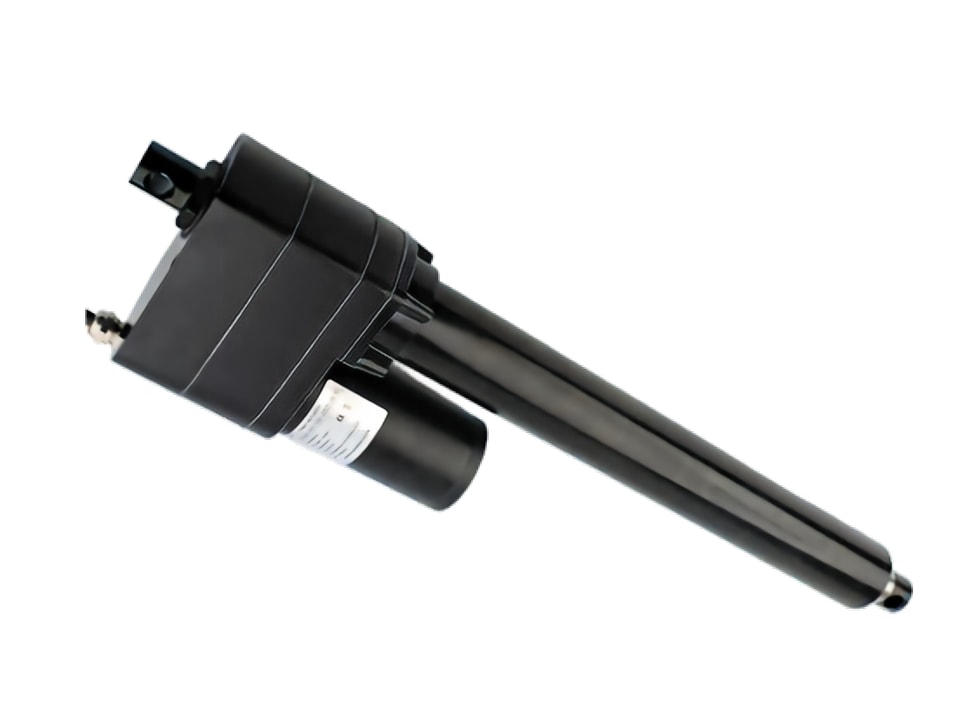

Electric linear actuator
YMD-606M
Compact two-stage telescopic industrial linear actuator with up to 3,000 N load, speed up to 60 mm/s, IP65 protection and 260-hour salt-spray resistance.
- Built-in limit switches
- Optional switch, Hall or potentiometer feedback
- 12/24/36/48 V DC options
- CE certified for export markets
Fig. 02 — Specification
Specifications
YMD-606M Two-Stage Telescopic Linear Actuator
The YMD-606M is a compact two-stage telescopic actuator designed for industrial equipment and harsh operating environments. It combines a short installation profile with up to 3,000 N load capacity and speed options up to 60 mm/s.
Product Features
- Two-stage telescopic structure
- Compact mechanical design
- Maximum load: 3,000 N
- IP65 protection
- Built-in limit switches
- Optional analog signal output
- 260-hour salt-spray test
- CE certified for export to the EU and other markets
- Suitable for harsh industrial environments
General Specifications
| Housing Color | Black; custom colors available |
|---|---|
| Screw Type | Trapezoidal lead screw |
| Control Options | Wired, wireless or other control configurations |
| Application | Industrial equipment |
| Operating Temperature | 0°C to 40°C; optional −20°C to 65°C or −40°C to 65°C |
| Operating Noise | ≤75 dB |
| Stroke Range | 50–600 mm; special strokes can be customized |
| Maximum Load | 3,000 N |
| Duty Cycle | 20% |
| Motor | Brushed DC motor; other options available |
| Overload Protection | None or electronic protection |
| Protection Rating | IP65; other requirements available |
| Feedback Options | None, switch signal, Hall sensor or potentiometer |
| Input Voltage | 12 V, 24 V, 36 V or 48 V DC |
| Motor Cable | 1 m, 2 m or customized length |
Performance Data
Speed tolerance: ±10%. Current values are specified for 12 V, 24 V, 36 V and 48 V operation.
| Drive Code / Ratio | Lead (mm) | No-load Speed (mm/s) | Full-load Speed (mm/s) | Maximum Load (N) | Maximum Self-locking Force (N) | No-load Current 12/24/36/48 V (A) | Full-load Current 12/24/36/48 V (A) |
|---|---|---|---|---|---|---|---|
| A / 40:1 | 5 | 16 | 12 | 3,000 | 4,000 | 2.5 / 1.2 / 0.8 / 0.6 | 18 / 9 / 6 / 4 |
| B / 20:1 | 5 | 30 | 22 | 1,500 | 2,000 | 2.5 / 1.5 / 0.8 / 0.6 | 18 / 9 / 6 / 4 |
| C / 10:1 | 5 | 60 | 40 | 700 | 1,000 | 2.5 / 1.5 / 0.8 / 0.6 | 18 / 9 / 6 / 4 |
Selection Notes
Select the drive code according to the required balance between force and speed. Code A provides the highest load capacity, while Code C provides the highest speed. Special stroke, cable length, control and feedback configurations can be customized.
